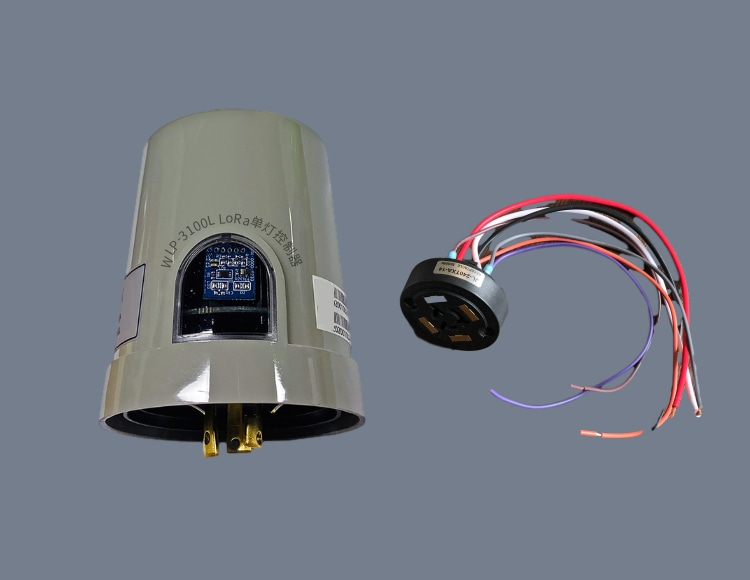

WLP-3100L-LoRa single light controller basic introduction:

The LoRa single-light controller conforms to the LoRaWAN Specification 1.0.1 ClassC standard issued by the LoRa Alliance, and can easily and quickly access the LoRaWAN network. It has the characteristics of low power consumption, long transmission distance and strong anti-interference. The Zigbee communication system conforms to the IEEE802.15.4 protocol of the ZigBee communication standard. It has the advantages of long communication distance, strong anti-interference ability, flexible networking, etc. It can realize the data transmission between devices from one point to many points and from many points to many points, and can form Mesh network structures such as star network and mesh network. When one of the communication systems fails, real-time control and data reading can be carried out through the other communication system, so as to improve the road lighting rate and the accuracy of lamp fault judgment.

WLP-3100L-LoRa Single light controller product Main performance characteristics:

● With current, voltage, power, electric energy, frequency, temperature detection and other functions

●1 switch and 0 ~ 10V/PWM dimming signal output function

● With overcurrent protection, lamp condition detection, default lighting and other functions

● Suitable for switching and dimming of LED lamps, high-pressure sodium lamps, gold halide lamps and other lamps

● Safety based overload protection design

Low frequency: 433 MHZ or 470 MHZ / 868 MHZ, 915 MHZ / 923 MHZ

● Industrial grade operating temperature: -40℃ ~ +85℃

● Easy to install, can respond to the instructions sent by the center in a few seconds.

WLP-3100L-LoRa single light controller wiring mode:

Black: Firewire input

White: zero line

Red: Firewire output

Gray: Dimming negative

Purple: positive dimming

WLP-3100L-LoRa Single light controller installation requirements:

The installation and placement of LoRa single light controller should avoid dimming positive and negative steps and rain soaking. The LoRa single light controller should be fixed firmly when installed, and avoid scratches and insulation damage to the line.

Ask professional installation personnel for on-site installation;

Storage environment: Avoid damp, water environment;

Do not install in an environment with long-term high temperature, so as not to affect the service life;

Handling: It is strictly prohibited to fall from high altitude and accumulate too much;

During installation, make sure that the wiring terminal is insulated.

When installing, pay attention to the polarity of the dimming signal output line when connected to the drive power supply, do not reverse the connection;

During the installation, do not switch the AC input cable to the AC output cable, and ensure that the null live cable is correctly installed. Need to install 6A fuse before terminal AC input;

Do not connect the dimmer signal output line to the AC output line incorrectly.

Non-liability assumption

Due to violation of product instructions, or by non-designated personnel to provide repair and maintenance services, resulting in abnormal use, wrong installation, etc., the company does not assume any responsibility.

The quality assurance expires immediately after the controller is opened.

WLP-3100L-LoRa single light controller technical parameters：

● Supply voltage: AC85-265V

● Dimensions: 84 Dia×97.8 (mm)

● Protection grade: IP65

● Output rated current: 2A Max

● Dimming control type: 0-10V/PWM (optional)

● Transmission distance: 400 meters (between nodes under normal road environmental conditions)

● Product output: single-phase AC

● Data collection: U,I,P.Q.COSΦ

● Transmission power: 20dBm±1dBm (max)

● Sensitivity: -136dBm±1dBm (@SF=12)

● Transmission distance: 400 meters (between nodes under normal road environmental conditions)

● Antenna frequency band: 2.4G

● Antenna gain: 3DB

● Antenna standing Waves: 2.0

● Antenna type: Built-in

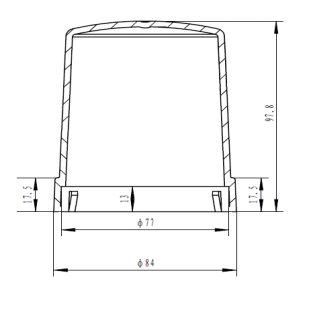

WLP-3100L-LoRa single light controller dimensions：
