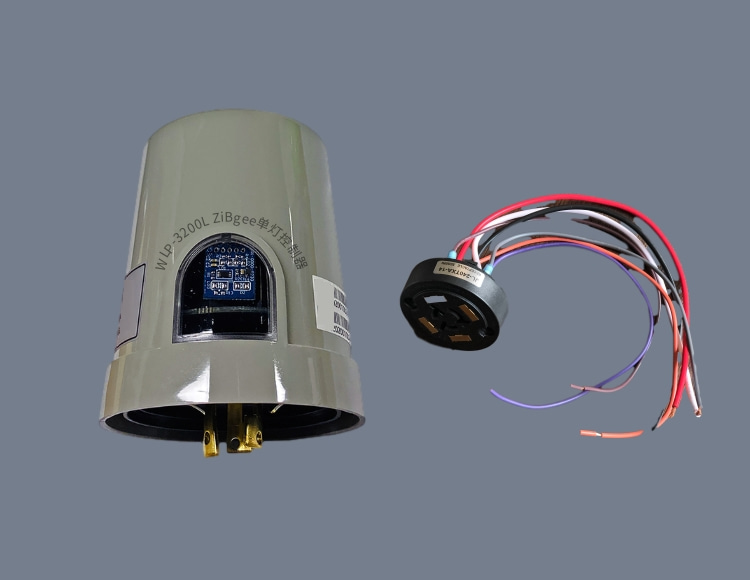

WLP-3200L-ZigBee single light controller basic introduction:

Zigbee single lamp controller is a new type of controller developed to meet the needs of domestic and foreign lighting control market, and is an important part of the street lamp control system. Its core chip adopts the ZigBee wireless communication module developed by itself, combined with professional hardware and software design, making the product powerful, easy to implement, cable-free and reliable. Easy maintenance and other advantages, is specially developed for intelligent street lighting and high-performance street lighting energy-saving products.

ZigBee single light controller contains a power, energy consumption measurement circuit, it can real-time collection of the single light controller load work and power consumption, greatly reducing the working pressure of the street lamp management department, improve work efficiency, so as to significantly improve social energy saving benefits.

WLP-3200L-ZigBee Single light controller Main performance characteristics:

● Input power: AC 85 ~ 265V 50/60Hz

● Output power: AC 85 ~ 265V 50/60Hz

● With current, voltage, power, power consumption detection function

● 1-way switch and 0 ~ 10V or PWM dimming signal output function

● Monitor the working status of the lamps, and output alarms for abnormal situations

● Single light custom group control

● Local timing, latitude and longitude control function

● With overcurrent protection, lamp condition detection, default lighting and other functions

● Suitable for switching and dimming of LED lamps, high-pressure sodium lamps, gold halide lamps and other lamps

● Safety based overload protection design

● Wireless frequency: 2.4G ISM worldwide free band

● Wireless channels: 16

● Single network capacity: 65535 nodes

● Perfect ZIGBEE wireless networking communication protocol

● Industrial grade operating temperature range: -40℃ ~ +85℃

● Easy to install, can respond to the instructions sent by the center in a few seconds.

ZigBee single light controller connection mode

Black: Live line input White: neutral line Red: live line output

Gray: Dimming negative purple: dimming positive

WLP-3200L-ZigBee Single light controller installation requirements:

The ZigBee single light controller should be installed and placed to avoid positive and negative dimming steps and rain soaking. ZigBee single light controllers should be securely installed and avoid scratches and insulation damage to the line.

Ask professional installation personnel for on-site installation;

Storage environment: Avoid damp, water environment;

Do not install in an environment with long-term high temperature, so as not to affect the service life;

Handling: It is strictly prohibited to fall from high altitude and accumulate too much;

During installation, make sure that the wiring terminal is insulated.

When installing, pay attention to the polarity of the dimming signal output line when connected to the drive power supply, do not reverse the connection;

During the installation, do not switch the AC input cable to the AC output cable, and ensure that the null live cable is correctly installed. Need to install 6A fuse before terminal AC input;

Do not connect the dimmer signal output line to the AC output line incorrectly.

Non-liability assumption

Due to violation of product instructions, or by non-designated personnel to provide repair and maintenance services, resulting in abnormal use, wrong installation, etc., the company does not assume any responsibility.

The quality assurance expires immediately after the controller is opened.

WLP-3200L-ZigBee single light controller technical parameters：

● Dimensions: 84×97.8 (mm)

● Protection grade: IP65

● Output rated current: 2A Max

● Wireless frequency: 2.4G

● Dimming control type: 0-10V/PWM (optional)

● Transmission distance: 400 meters (between nodes under normal road environmental conditions)

● Product output: single-phase AC

● Data collection: U,I,P.Q.COSΦ

● Antenna frequency band: 2.4G

● Antenna gain: 3DB

● Antenna standing Waves: 2.0

● Antenna type: Built-in
