WLP-3110L solar lamp control equipment

Product name: Solar street light controller

Communication mode: wireless communication mode

Main functions: reliable digital dimming output interface (0-10V/PWM dimming mode can be customized), with current, voltage, power, power factor, power remote reading function, with power accumulation, remote clearing function, with fault information active reporting function.

Basic introduction：WLP-3110L is a communication module that can be adapted to the street lamp controller. The module has 4G-Cat.1 communication function and can remotely connect to the server in the cloud. At the same time, the module has RS485 and RS232 serial port communication, which can complete the delivery and reading of the parameters and status of the street lamp, such as voltage and current data display.

資料下載產品資質使用案例產品選型

品質保證

兩年質保，終身維護

合作模式

經銷、代理、OEM/ODM

售前售后

12小時內快速回應

產品介紹技術參數尺寸說明

WLP-3110L solar street light controller product features:

1. Wireless communication

2. Suitable for 12V/24V input voltage

3. It can control most of the mainstream power controllers in China through infrared communication

4. Remote control and information reading through the computer interface and wechat mini program on the mobile phone

5. You can switch the load remotely to adjust the power of the load

6. Read the load/voltage/current/power inside the controller

7. Fault alarm, load fault alarm

8. Remotely deliver and read the parameters of multiple or a single controller

9. The module has the base station positioning function

10. Support remote firmware upgrade

WLP-3110L solar street light controller connection mode:

For safety, please follow the wiring sequence of load, battery and photocell. The antenna should avoid direct contact with metal (including shielded functional items) and cannot be placed in a completely closed iron container. In addition, the installation should be fixed firmly, and avoid scratches and insulation damage to the line.

a) Connection load

At this time, the controller has not started to work, and the controller has no response after the connection is completed.

b) Connect batteries

Before connecting the battery, ensure that the battery voltage is higher than 9V to start the controller. If the system is 24V, ensure that the battery voltage is not lower than 18V. After the battery is connected, the controller starts to work.

c) Connect the optical panel

The controller can also be used for 12V or 24V standard solar modules, and can also be used for solar modules whose open circuit voltage does not exceed the specified maximum input voltage. The maximum power point voltage of the solar module should not be lower than the battery voltage.

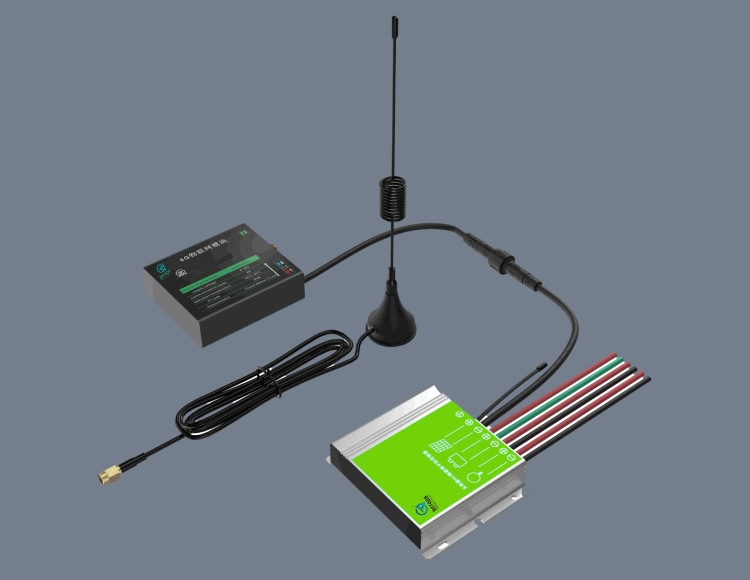

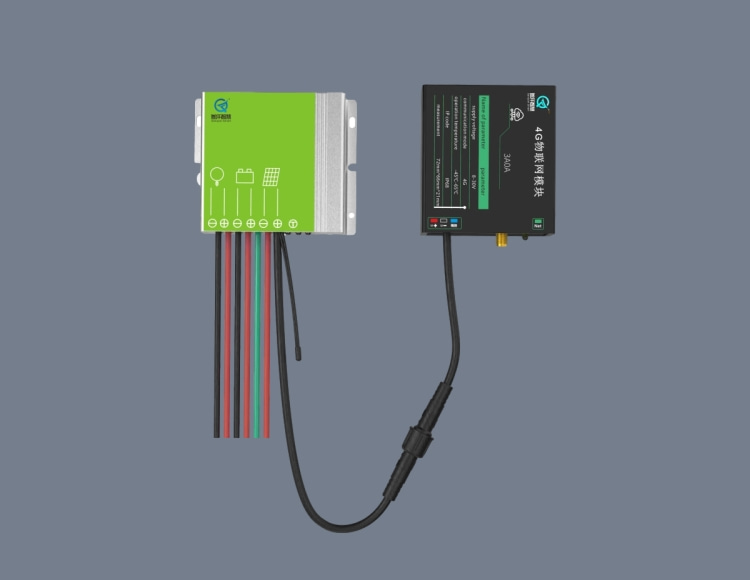

d) The controller and module are connected by RJ12 jumper to complete communication and power supply without additional power supply.

e) Connect the antenna

Fix the antenna on the housing and connect the appliance through the antenna extension cable.

WLP-3110L solar street light controller dimensions：

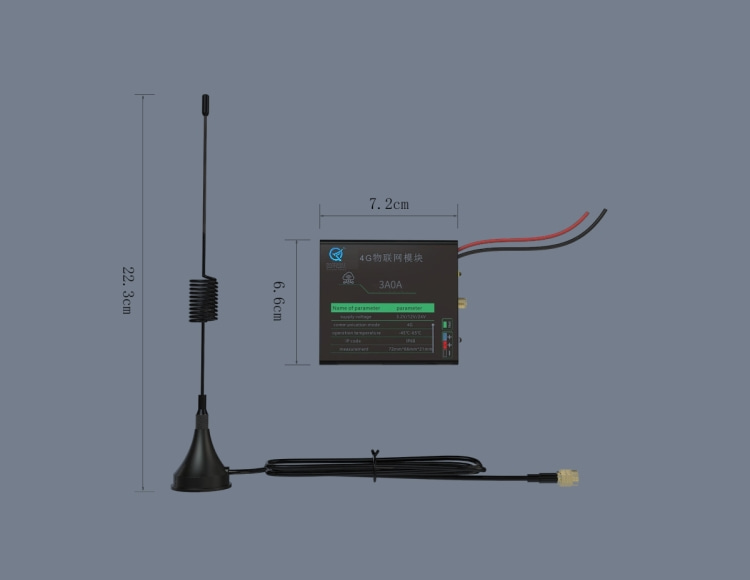

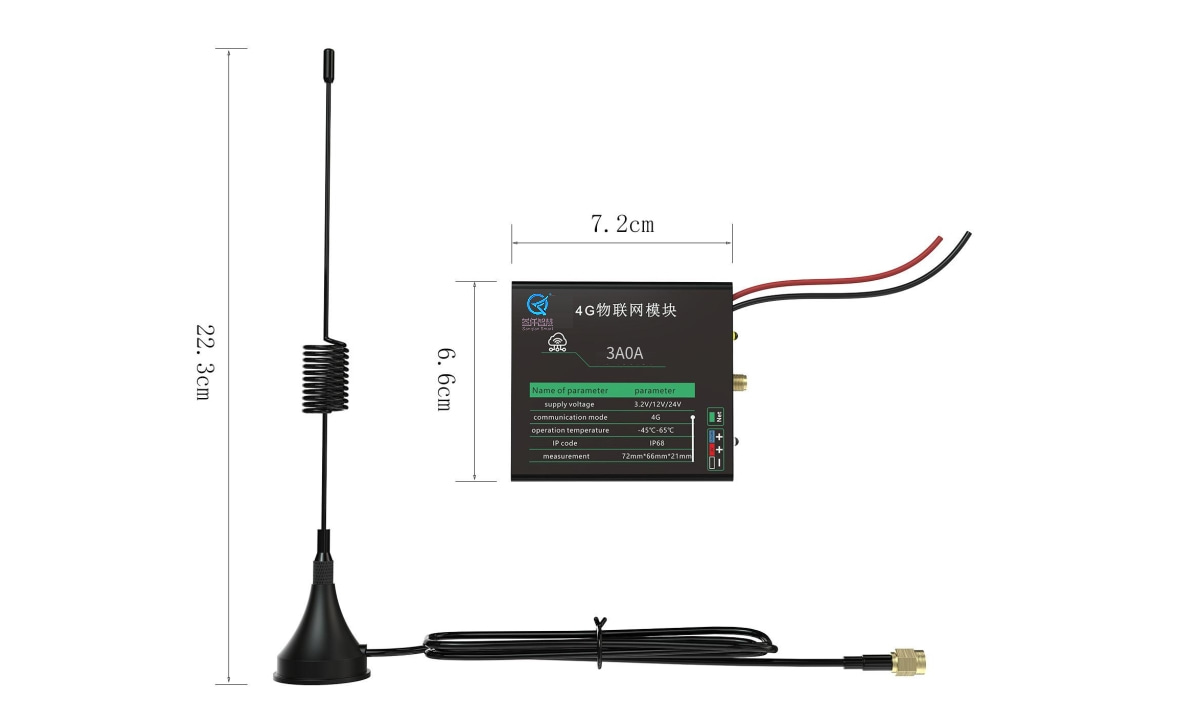

Street light controller dimension diagram
